One of the most ongoing issues that I see when I visit your offices is this. The Ribbon is
installed incorrectly. The simple facts are that installing a ribbon can be a little like
clearing a jam out of the copier. I have made an effort here to give instructions on
replacing them. If you want to give me feedback please feel free to do so.
Dok
installed incorrectly. The simple facts are that installing a ribbon can be a little like
clearing a jam out of the copier. I have made an effort here to give instructions on
replacing them. If you want to give me feedback please feel free to do so.
Dok
To Install a ribbon on a machine correctly is fairly simple
but can be messy. It is a good idea to have some latex
gloves handy.
but can be messy. It is a good idea to have some latex
gloves handy.
The thing to remember about installing a ribbon is this, if it is too
hard and you are forcing it, something is wrong.
Check to make certain that you have the oblong holes to the left.
hard and you are forcing it, something is wrong.
Check to make certain that you have the oblong holes to the left.
Looking at the diagram on the left you will
notice that the holes in the spools are not
round but rather oblong. On the other
side of the spools, those holes are round.
notice that the holes in the spools are not
round but rather oblong. On the other
side of the spools, those holes are round.
To the right you will notice that I have
inserted the round hole into the
receiving pin and have positioned the
ribbon for final insertion. The back spool
and front spool work the same way.
inserted the round hole into the
receiving pin and have positioned the
ribbon for final insertion. The back spool
and front spool work the same way.
Unplug the machine from the AC Power source before attempting this.
While there is little danger of getting shocked there is always the hazard of
tripping the trigger mechanism and possible hurting yourself.
While there is little danger of getting shocked there is always the hazard of
tripping the trigger mechanism and possible hurting yourself.

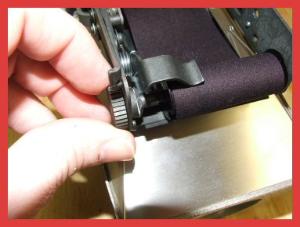

To the left I am gently rotating the
driving wheel counter clockwise until
the ribbon seats
driving wheel counter clockwise until
the ribbon seats
| In review, Facing the front of the machine, the oblong holes in the ribbons' spool go on the left side of the mechanism, using gentle pressure to hold the ribbon feelers out of the way. Position the round end over the receiving pin on the right (in the case of the Rapidprint) and then gently slide the oblong hole over the left driving mechanism (fig 1a) Then gently rotate the driving wheels until the ribbon seats. |

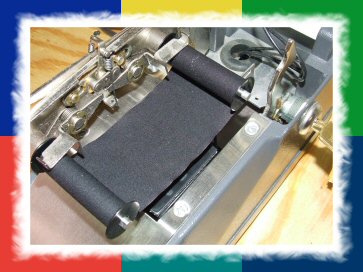

With the Widmer, (left) simply lift the
ribbons feelers and slide the ribbon on
to the shafts, oblong hole to the left.
ribbons feelers and slide the ribbon on
to the shafts, oblong hole to the left.
